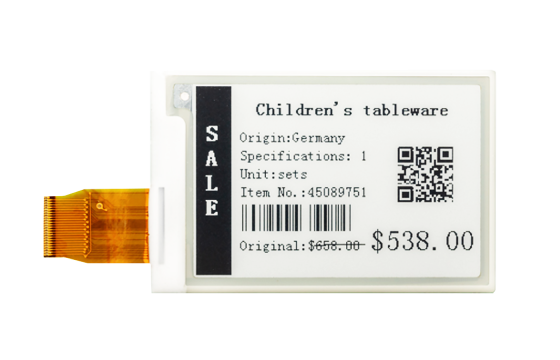

2.66" Black/White ePaper Display
2.66" Black/White ePaper Display
E-PAPER
2.6"
SPI
ePaper display with wide viewing angles that can hold an image on the display with ZERO power.
- 2.66" black and white display
- 152×296 pixel resolution
- SPI Interface
- High contrast pure reflective mode
Suitable for Electronic Shelf Label Systems, product tags, portable medical devices and industrial instrumentation.
Specifications
| Feature | Specification |
|---|---|
| Part Number | 11821 |
| Display Mode | EPD |
| Screen Size | 2.6" |
| Resolution | 152 x 296 |
| Orientation | Portrait |
| Grey Level | 2 |
| Reflectivity | 35 |
| Contrast Ratio (minimum) | 8:1 |
| Interface | SPI |
| Operating Voltage | 3.0V |
| OP Temperature | 0° to 50°C |
| Dimensions | 36.3 × 71.8 × 1.0 mm |
| Lifetime | 1,000,000 times or 5 years |
* Optional feature available on this product
