Fitlet3: IoT Industrial PC

ARM
A53

32GB

A powerful Industrial IoT Gateway PC which can be paired with the Hailo-8™ AI accelerator, allowing edge devices to run deep learning applications at full scale. Designed for industrial automation, AI edge computing and IOT applications.

Designed for versatility and with 24/7 operation in mind
Wide range of extended connectivity and industrial interfaces
Extended temperature and wide input voltage
Customisation is easy with wide range of FACETs
Fanless design with shock, vibration, dust, and humidity resistance
5-Year warranty with full support

Send enquiry

Specifications

I/O Expansion Modules

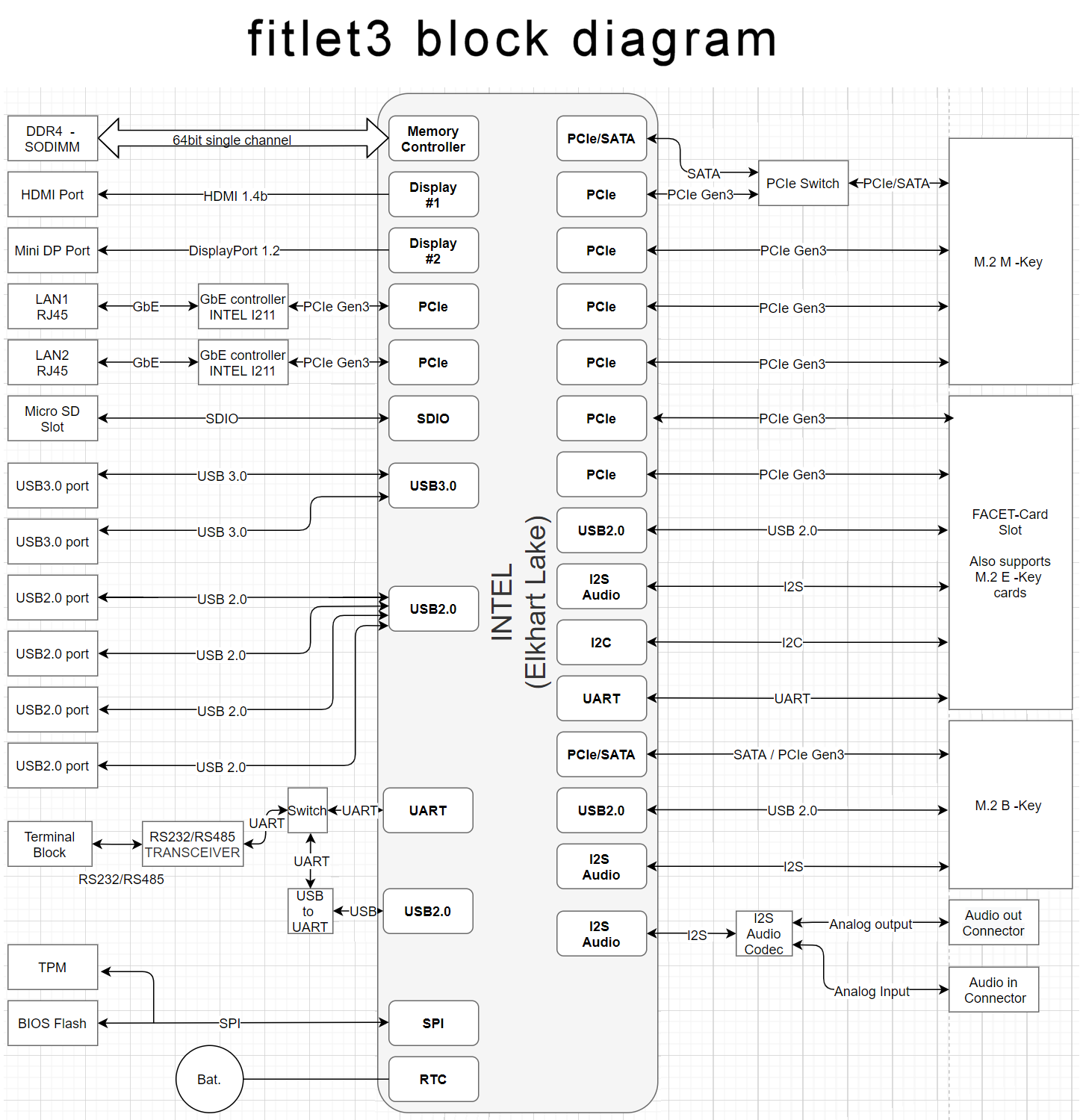

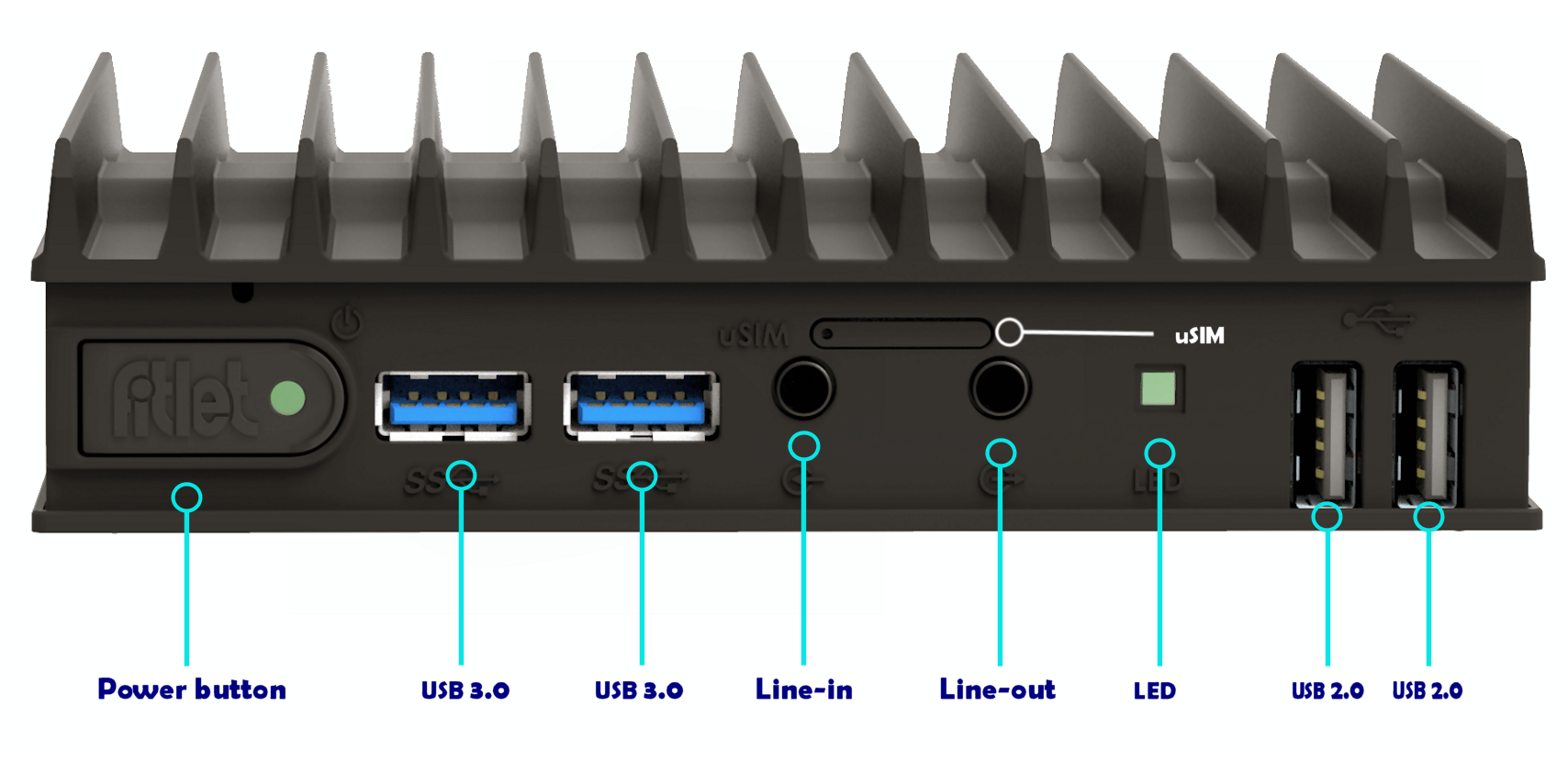

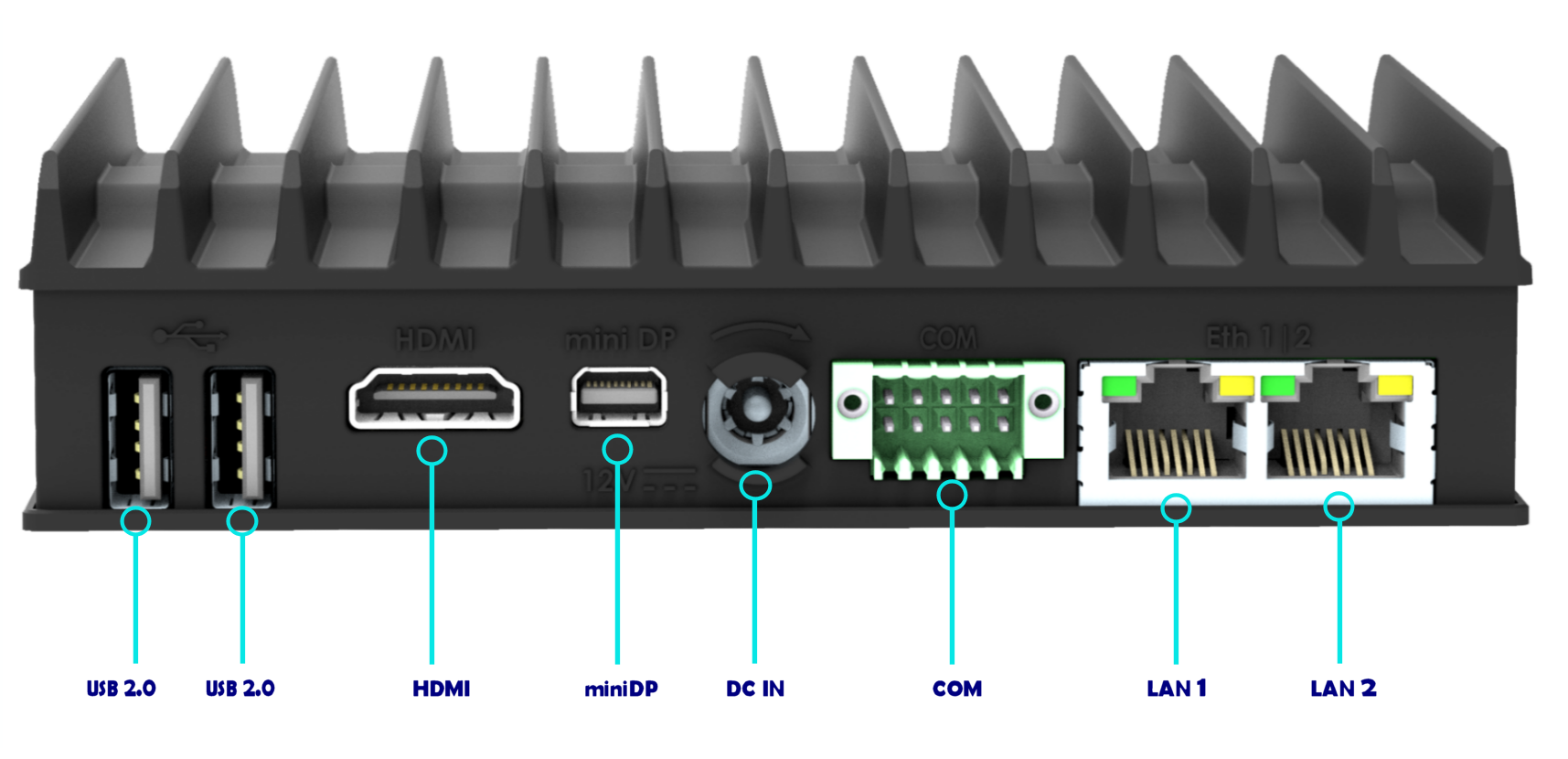

Diagrams

Customisation

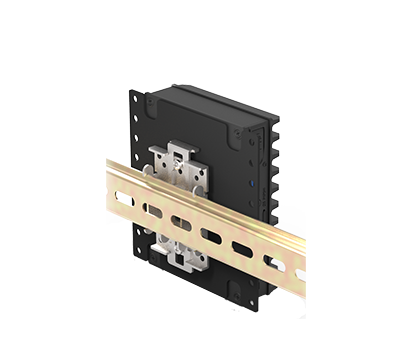

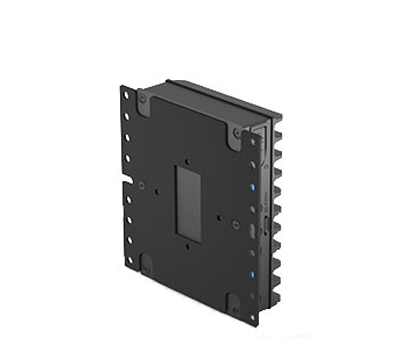

Accessories

Feature	Specification
CPU Model	Intel® Atom™ x6425E Processor Quad Core ׀ Base: 2.0GHz, Boost: 3.0GHz ׀ TDP 12W Intel® Celeron J6413, quad core - Base: 1.8GHz, Boost:3.0GHz-TDP 10W Intel® Atom™ x6211E Processor Dual Core ׀ Base: 13.GHz, Boost 3.0GHz ׀ TDP 6W
Memory	Max Capacity 32GB SO-DIMM DDR4 up to 3200MT/S

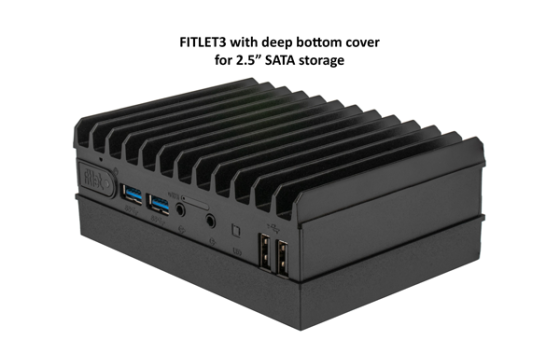

Storage	M.2 Key-M: PCIe x 4/SATA for M.2 NVMe or M.2 SATA, size up to 2280 M.2 Key-B: SATA for M.2 SATA, size up to 2260 (mutual with LTE/5G modem) 2.5” HDD/SSD: Optional M.2 to SATA expansion for 2.5” HDD/SSD
Display Interface	HDMI 1.4b (up to 3840x2160 @30Hz) Mini DP 1.2 (up to 4096x2160 @60Hz) Dual mode

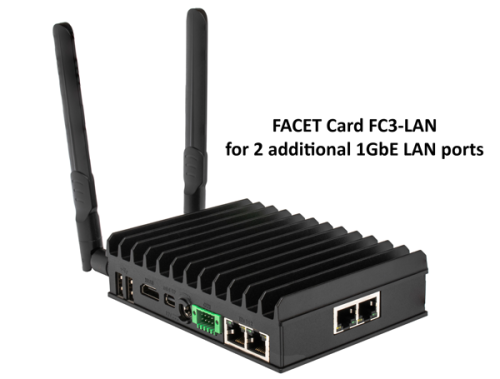

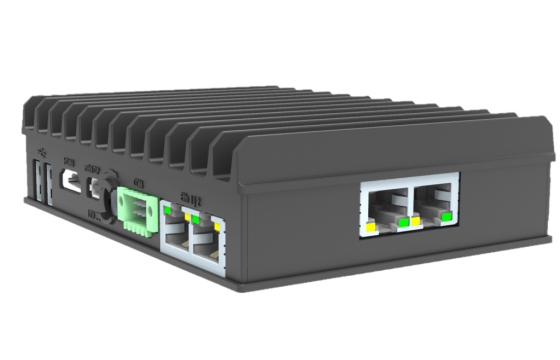

LAN	Type: 2x Gigabit Ethernet on RJ45 Optional LAN available with FACET card
AI Acceleration Module	Hailo-8 M.2 Key-M module Hailo-8 M.2 Key-A+E module 2 Hailo-8 modules: Key-M and Key-A+E (Up to 2 Hailo modules can be installed on Fitlet3)
WIFI	Optional onboard module with WiFi-6E*
Bluetooth	Optional 5.2
USB	4x USB 2.0 2x USB3.1

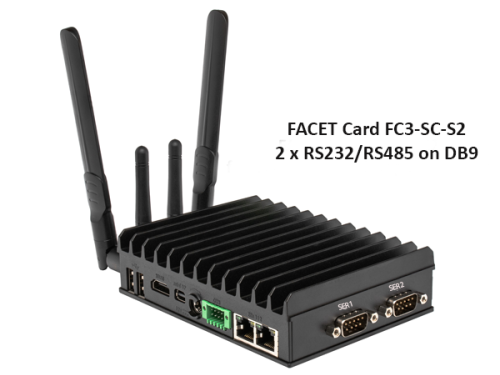

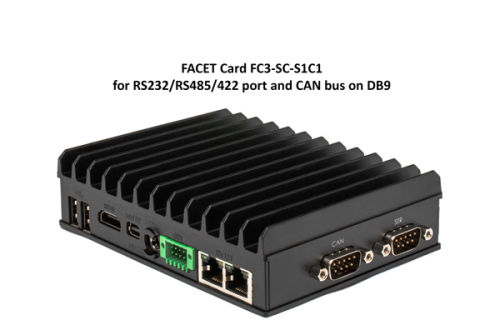

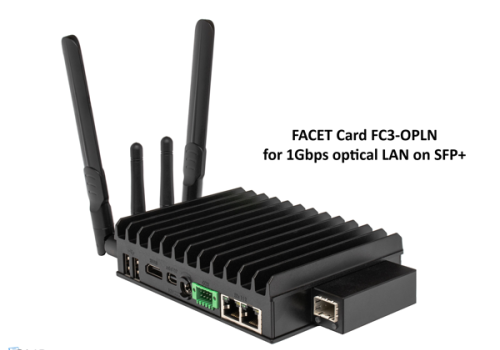

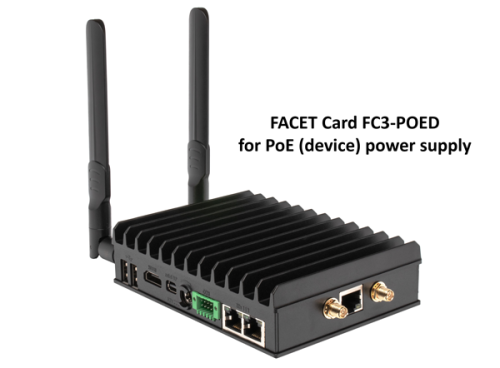

Expansion	See FACETs Options
Power Supply Voltage	7V to 42V
Dimensions	132.8 x 100 x 34.8mm
OS Support	Windows 10 IoT Enterprise LTSC 2021 Windows 11 Pro Linux Mint/Ubuntu
Operating Temperature	Commercial: 0° to 45°C Extended: -20° to 70°C Industrial: -40° to 85°C
